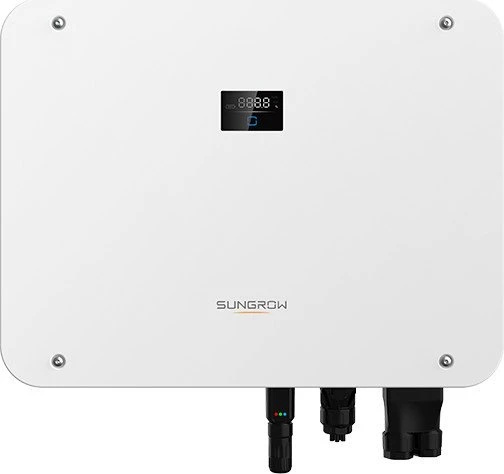

Sungrow Hybrid Inverter

DDF for Inverter – Plug & Play Integration

With this DDF, measurement values are read from the inverter. This enables Plug & Play integration into the Energy Manager and energy meters.

Setup

In the Device Station, enter the IP address of the inverter and the Slave ID. The Slave ID is normally 1.

In the Energy Manager, the individual components can be assigned directly from the Device Station under the IO Configuration:

• Grid
• PV
• Battery

The following energy meters can optionally be configured:

• Grid import
• Grid export
• House consumption
• PV production
• Battery charging
• Battery discharging

Tested configuration:

• Inverter: SH15T
• Protocol version: V1.1.7

Inverters with an identical protocol are also supported

For further information about the communication protocol, please refer to the attached PDF.
