SunSpec
SMA
Description
Using this DDF, you can integrate three-phase SMA PV inverters that support the SunSpec standard.
The DDF has been tested with the following SMA models
-

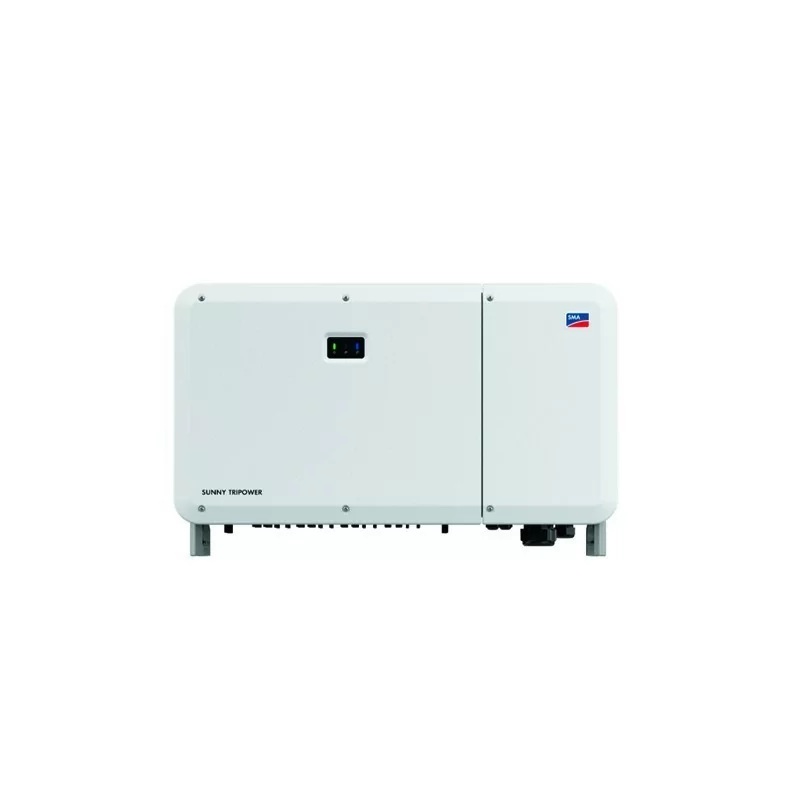

Sunny Tripower CORE2 (110kW) - Default slave ID: 1
- STP 25000 TL-30 (Legacy) - Default slave ID: 126
After an upload or restart, the system automatically detects PV meter registers in SunSpec Model 103.
Note: Only PV power and PV energy are read!
General Info
| Manufacturer | Type | Protocol | Model | Version | ID |
|---|---|---|---|---|---|
| SMA | Inverter & Battery | MODBUS TCP (DDF) | 15 | 1 | 0x0A00000B000F0100 |
Documents
DDF Items
| ID | Name | Unit | Type | Direction |
|---|---|---|---|---|
| 0 | PV Power | kW | ||
| 1 | PV Energy | Wh | ||
| 200 | Quality | |||
| 210 | Power Unit | |||
| 211 | Energy Unit |
Note
*2026-01-21 08:13:13 (do) ******************************
Last Commit: 7c42dd4d | 2026-01-21 08:12:17
*2026-03-09 07:42:36 (hw) ******************************
Last Commit: 8fff4fa9 | 2026-02-26 08:02:28
Last Commit: 7c42dd4d | 2026-01-21 08:12:17
*2026-03-09 07:42:36 (hw) ******************************
Last Commit: 8fff4fa9 | 2026-02-26 08:02:28
