DeviceLib für myGEKKO

myGEKKO OCPP GENERAL

Wallbox • OCPP (DDF)

myGEKKO

Descrizione

Scarica DDF firmato Versione min. OS: V10384-09

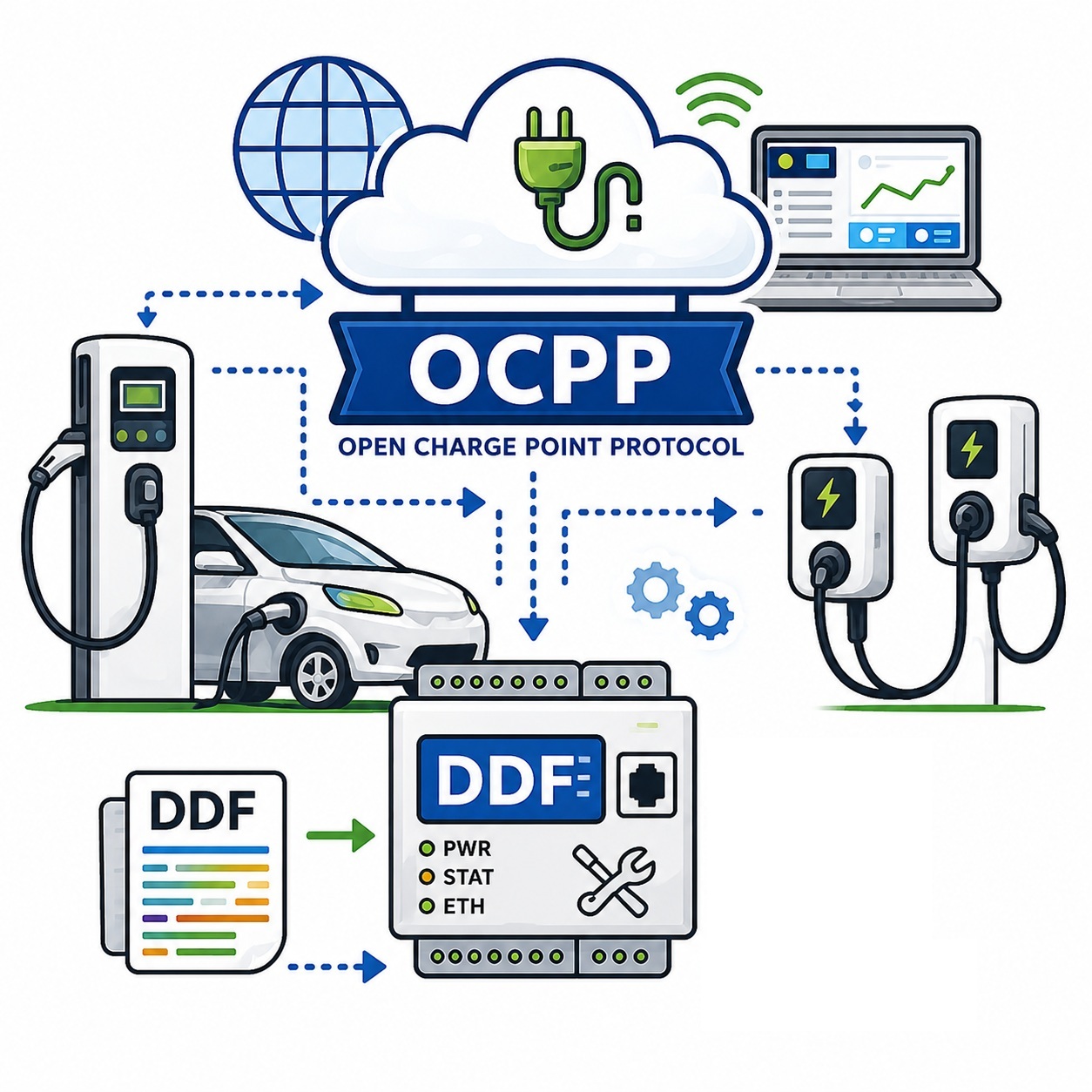

Device image

DDF per wallbox compatibili OCPP

Questo Device Definition File (DDF) consente l’integrazione standardizzata di wallbox compatibili OCPP.
Il DDF fornisce dati di stato, misurazione e controllo del punto di ricarica.
Include valori come tensione, corrente, potenza e consumo energetico. Inoltre, il DDF supporta il controllo della ricarica, la limitazione della corrente e l’autenticazione tramite RFID.

Nota: La disponibilità delle funzioni e dei dati dipende dalla wallbox, dalla versione OCPP e dal veicolo.

OCPP-Serveraddress= ws://ip:8550

Chargepoint Id in Url

Slavedefinition in Devicestation: Slaves= ChargepointID:Connectorid zb. 1217212:1,1217212:2

Informazioni generali

Produttore Tipo Protocollo Modello Versione ID
myGEKKO Wallbox OCPP (DDF) 8 1 0x1200000100080100

Documenti

Elementi DDF

ID Nome Unita Tipo Direzione
0 CPS 65= A (no car), 66= B (car connected), 67= C (charging), 68= D (charging with ventilation), 69= E (error), 70= F (communication error) IN
1 Charging Voltage V IN
2 Charging Current A IN
3 Charging Power kW IN
4 Charged Energy Wh IN
6 Rfid IN
7 Current_Set A OUT
8 Power unit kW STRING IN
9 Energy unit Wh STRING IN
9 Charge request 1=Requested IN
10 Error State 1=fault IN
11 PHASES IN
12 Quality IN
13 Cable plugged 1=Cable plugged IN
16 RFID_AUTH IN
18 RFID_AUTH_EN OUT
20 Intervall IN
22 RFID_START OUT
23 RFID_STOP OUT
24 PHASES_AVAILABLE IN
25 PHASES_SET IN
26 RFID_MESSAGE IN
27 CHARGEPOINT string IN
28 CONNECTOR int IN
30 Liveticker int IN
31 RFID_ADD IN
32 CPM string IN
33 PHASES_SET_SUPPORTED IN
34 ERROR string IN
