Suntracer RS485 pro
Elsner
Description
Download Signed DDF
min. OS version: V10244

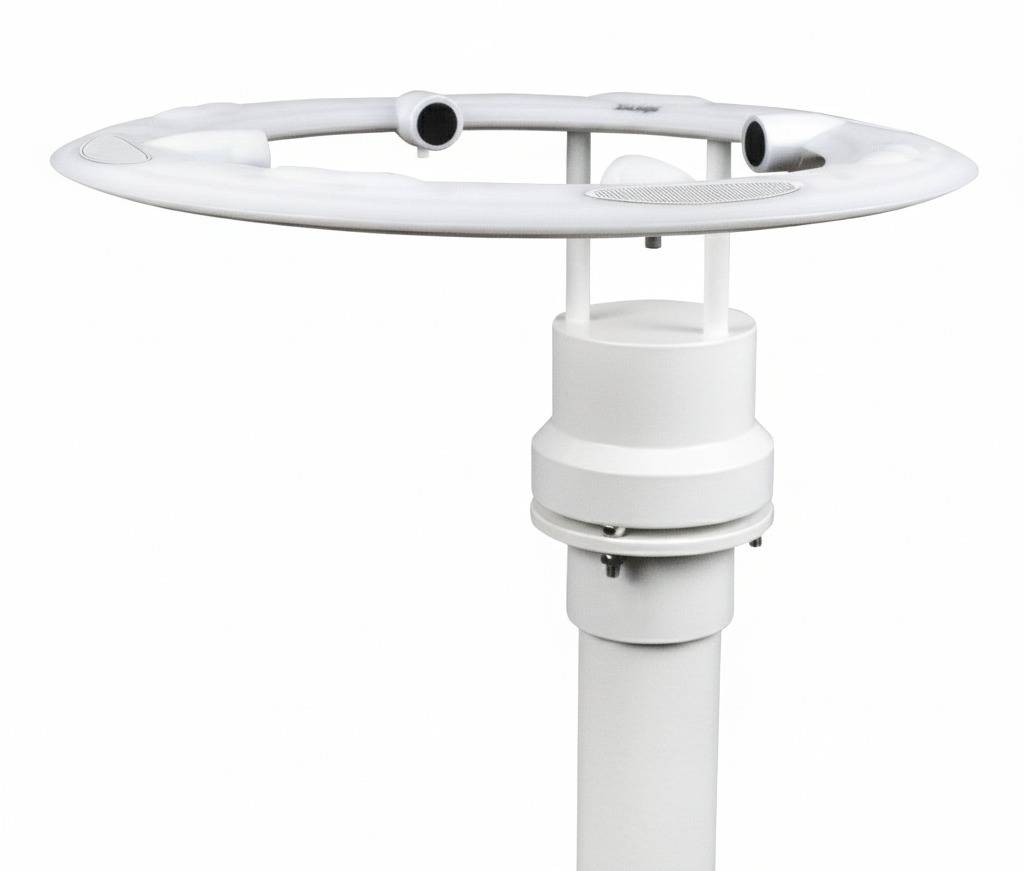

The Elsner Suntracer RS485 pro is a compact weather station for demanding building technology. It continuously delivers precise environmental data, enabling seamless, integrated building automation.
- Comprehensive Sensors: Precise measurement of wind (wear-free via ultrasound), precipitation, brightness, temperature, humidity, and air pressure – complemented by GPS for exact solar position data.
- Smart Automation: Ideal for the automatic sun tracking of blinds and awnings, energy-efficient climate control, and weather-dependent building protection functions.
- Easy Integration: Live measured values are reliably provided via the RS485 interface and can be directly integrated into your controllers or logic modules.
Further Information:
General Info
| Manufacturer | Type | Protocol | Model | Version | ID |
|---|---|---|---|---|---|
| Elsner | Weather station | SERCOM (DDF) | 4 | 1 | 0x0900004000040100 |
Documents
DDF Items
| ID | Name | Unit | Type | Direction |
|---|---|---|---|---|
| 0 | Temperatur outside | C | ||
| 1 | Temperatur feelt | C | ||
| 2 | Sun south | klux | ||
| 3 | Daylight Indication | OFF,ON | ||
| 4 | Daylight | lux | ||
| 5 | Wind | m/s | ||
| 6 | Wind Angle | |||
| 7 | Beaufort | 0-12 | ||
| 8 | Humitity | %.r.H | ||
| 9 | Specific Humidity | g/kg | ||
| 11 | Raining | NO,YES | ||
| 13 | Air Pressure on Sealevel | Pa | ||
| 14 | Dew point | C | ||
| 15 | Height above sea level | m | ||
| 16 | Time quality | 0= Not OK, 1= OK | ||
| 17 | Weekday | 1= Mon, 7= Sun, 0 = UTC not OK | ||
| 18 | Year | |||
| 19 | Month | |||
| 20 | Day | |||
| 21 | Hour | |||
| 22 | Minute | |||
| 23 | Seconds | |||
| 24 | Epoch seconds | s | ||
| 25 | Datetime string | |||
| 26 | Sunposition Position | 0= Not OK, 1= OK | ||
| 27 | Azimut | |||
| 28 | Elevation | |||
| 29 | Position Quality | 0= Not OK, 1= OK | ||
| 30 | Latitude | |||
| 31 | Longitude | |||
| 200 | Timestamp | |||
| 201 | Quality | |||
| 202 | Errorcounter | |||
| 204 | Info | |||
| 230 | Debug |
